SPECIFICATION

Heaton

LED Street Light

  • Beam Angle
    Beam Angle

    45-145°

  • Input
    Input

    220-240V

  • Life Hours
    Life Hours

    30000

  • Dimmable
    Dimmable

    No

  • Colour Temperature
    Colour Temperature

    4000K

Part NumberHE2P-30NHE2P-50NHE2P-80NHE2P-100NHE2P-150N
Power Rating30W50W80W100W150W
Max Lumens3600600096001200018000
Lumens Per Watt120120120120120
Power Factor>90>90>90>90>90
Dimensions (mm)300 x 140 x 55380 x 160 x 57480 x 230 x 63480 x 230 x 63TBC
Max Power30W51W80W101W150W

Key Features

  • Optional built-in Photocell with override capability
  • Asymmetric lens type II-M

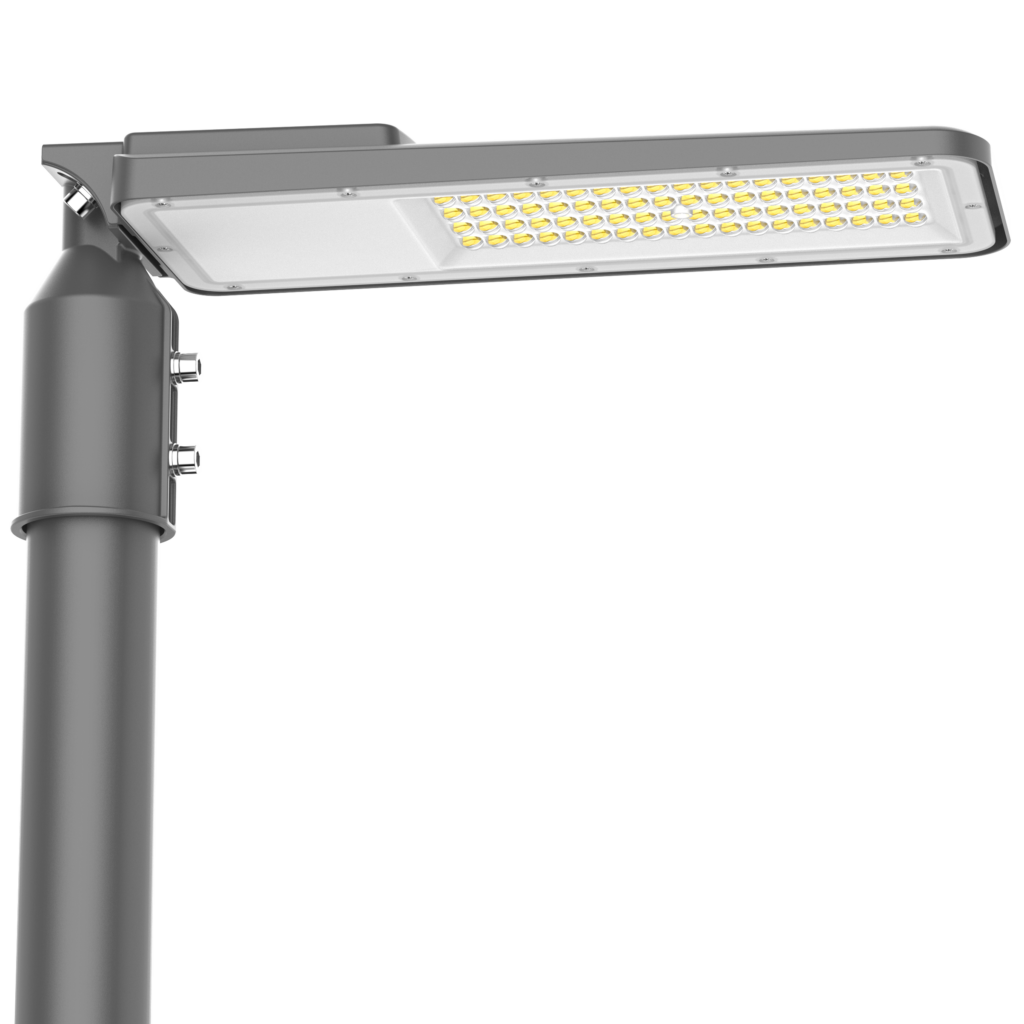

  • Vertical And Horizontal Mount
  • 4KV Surge protection
  • Installing diameter: 30-60mm
  • Supplied with 60cm cable
  • 3 year warranty

Please Note: Product specifications are subject to change without notice. Product supplied may differ slightly in appearance from images shown on this website. Diamond LED Lighting reserve the right to update product specifications.
