SPECIFICATION

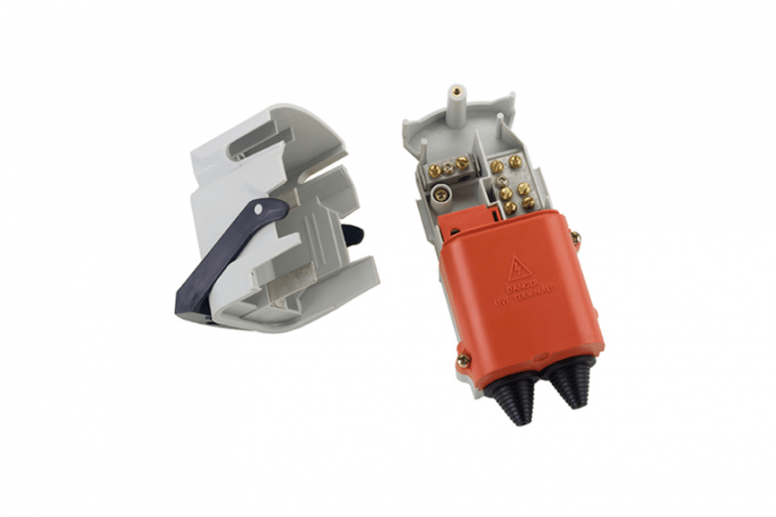

Fuse Cutout
| Part Number | DCA-150 | DCA-221 |
| Pole | Single | Twin |
Key Features
- 25A single pole fused, CNE /SNE or 25A double pole, single fuse
- Thermoplastic construction offering good impact resistance
- Fuse carrier fitted with cam operated lever to provide low extraction force
- Cross head corrosion resistant fixing screws
- Test probe access
- Loop In/Out cabling up to 16mm2 stranded or 25mm2 solid conductors in copper or aluminium
- Integral gland plate with cable entry via 2 x 20mm diameter PVC conical grommets
- Terminals incorporate serrated bores and M6 slotted head brass terminal pinch screws
- Outgoing terminals up to 16mm2 stranded copper conductors
Please Note: Product specifications are subject to change without notice. Product supplied may differ slightly in appearance from images shown on this website. Diamond LED Lighting reserve the right to update product specifications.
