Vega – 3CCT – 3PWR – Linkable Linear
- Selectable 3 colour temperatures
- 3 Selectable Wattages

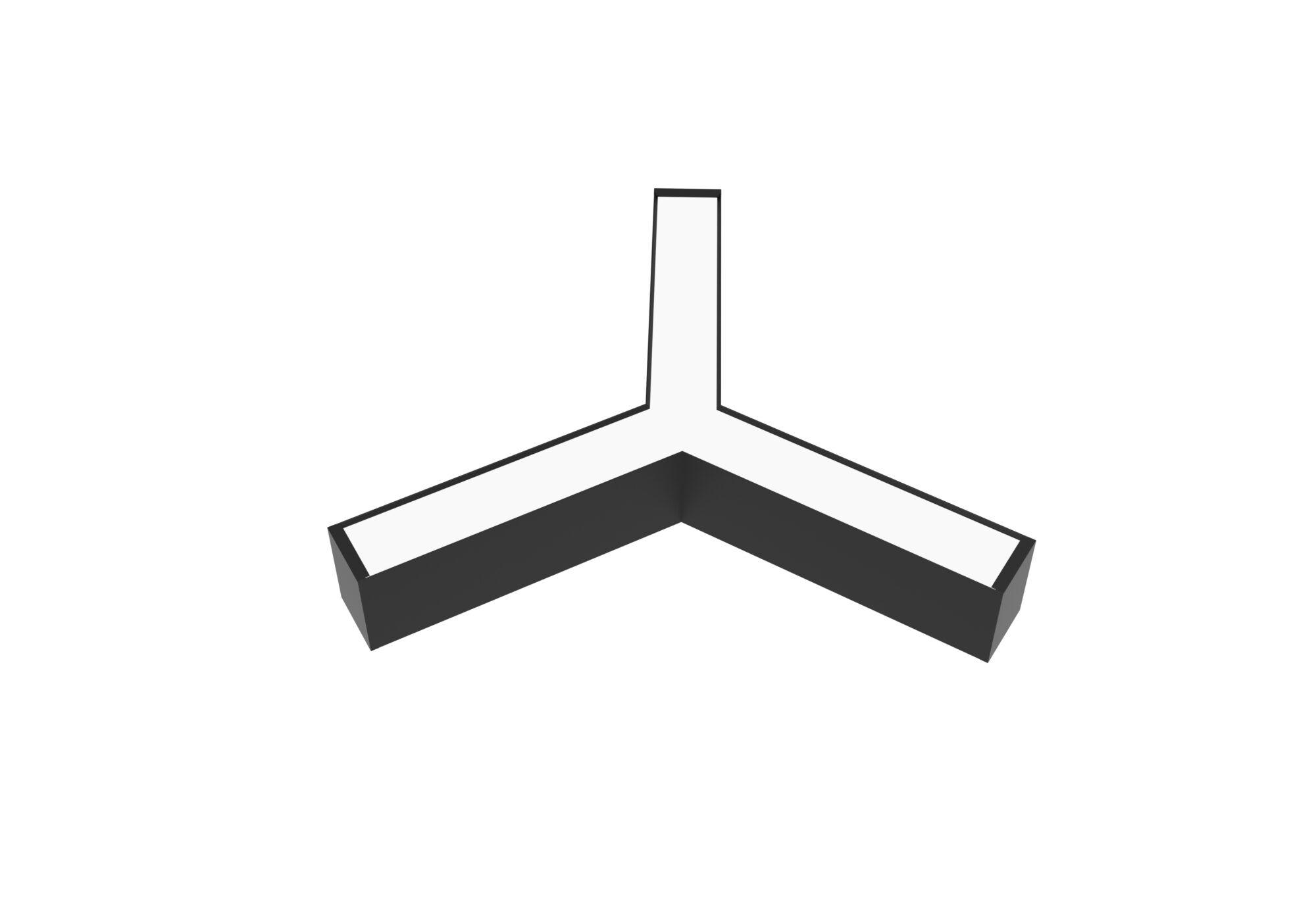

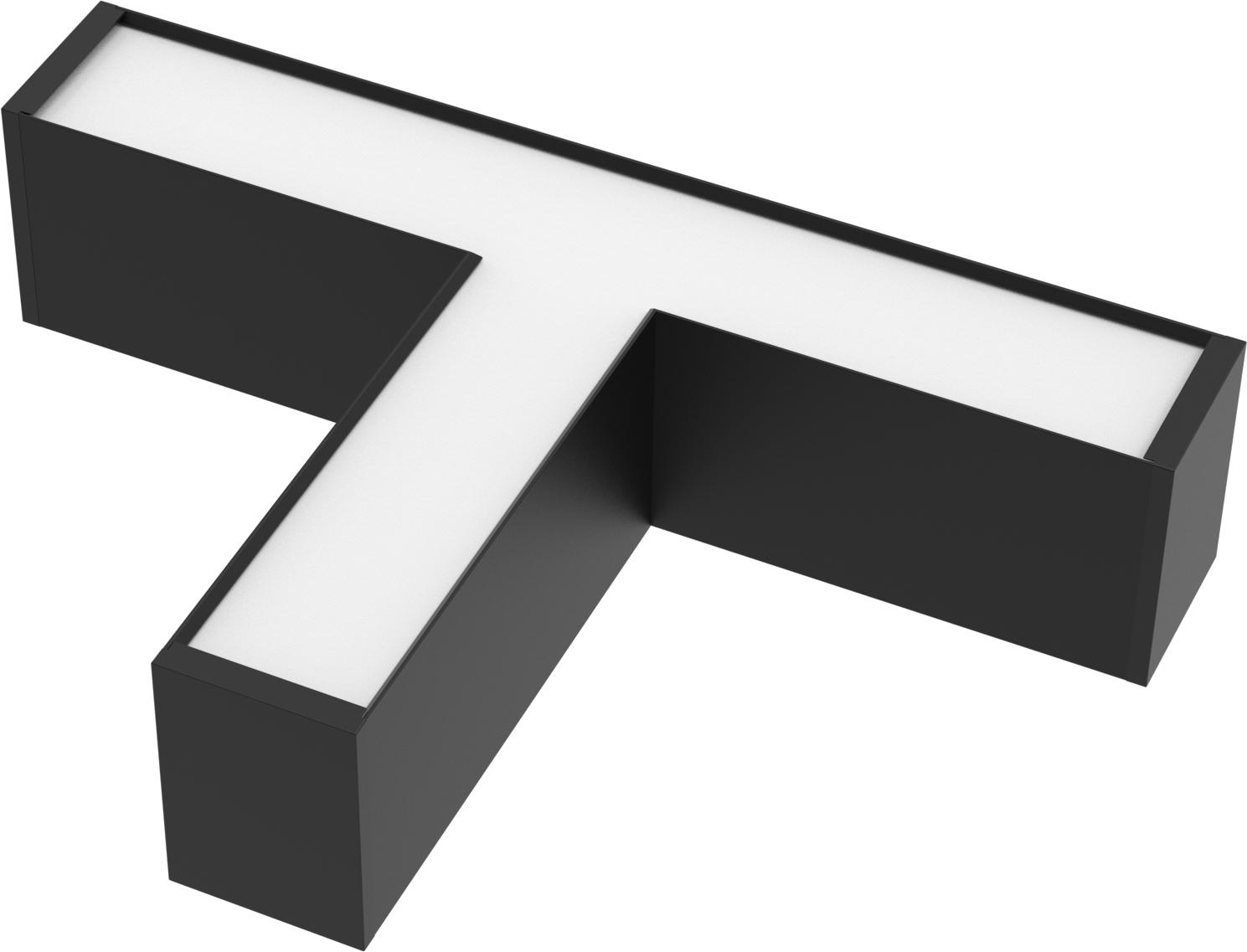

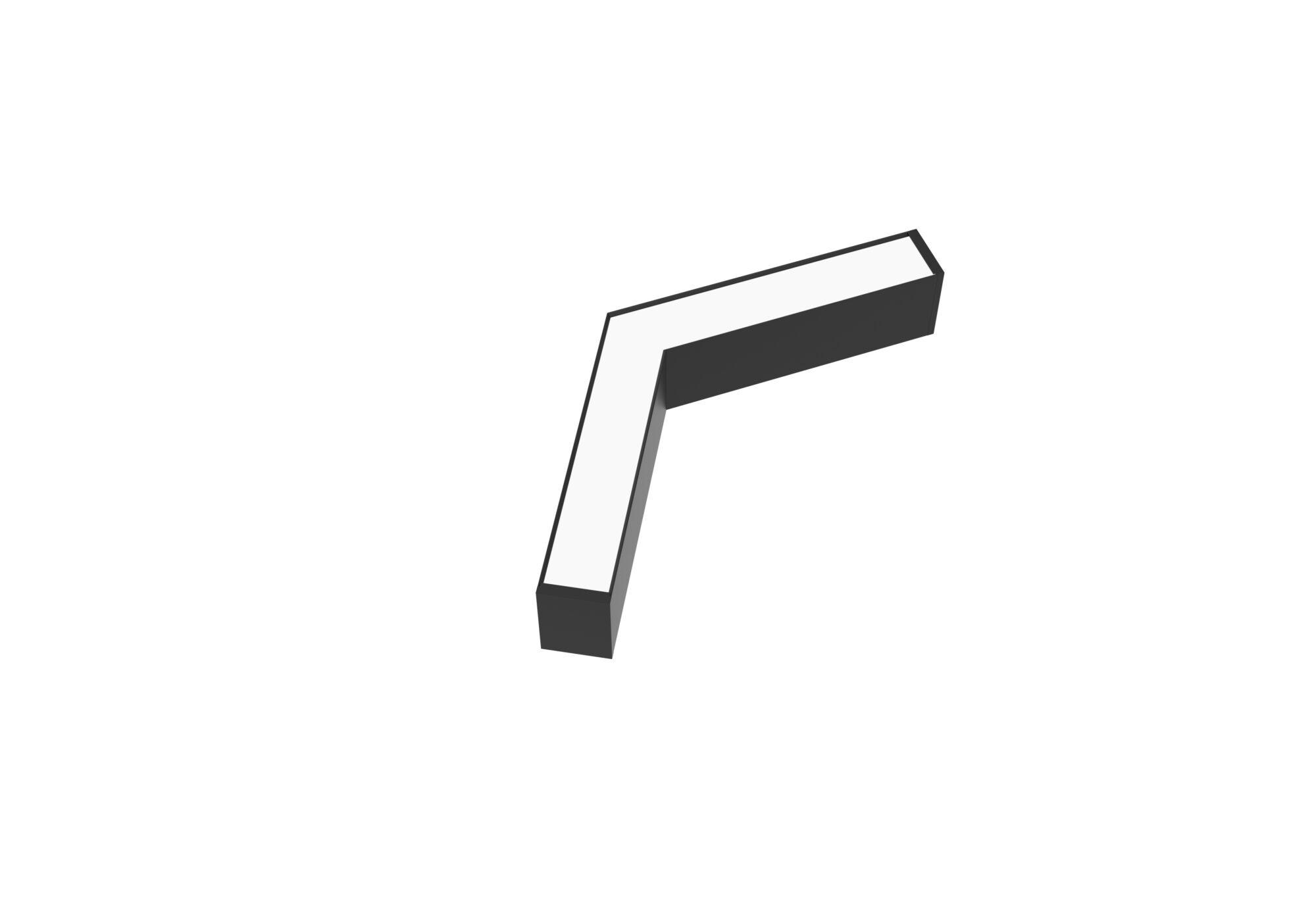

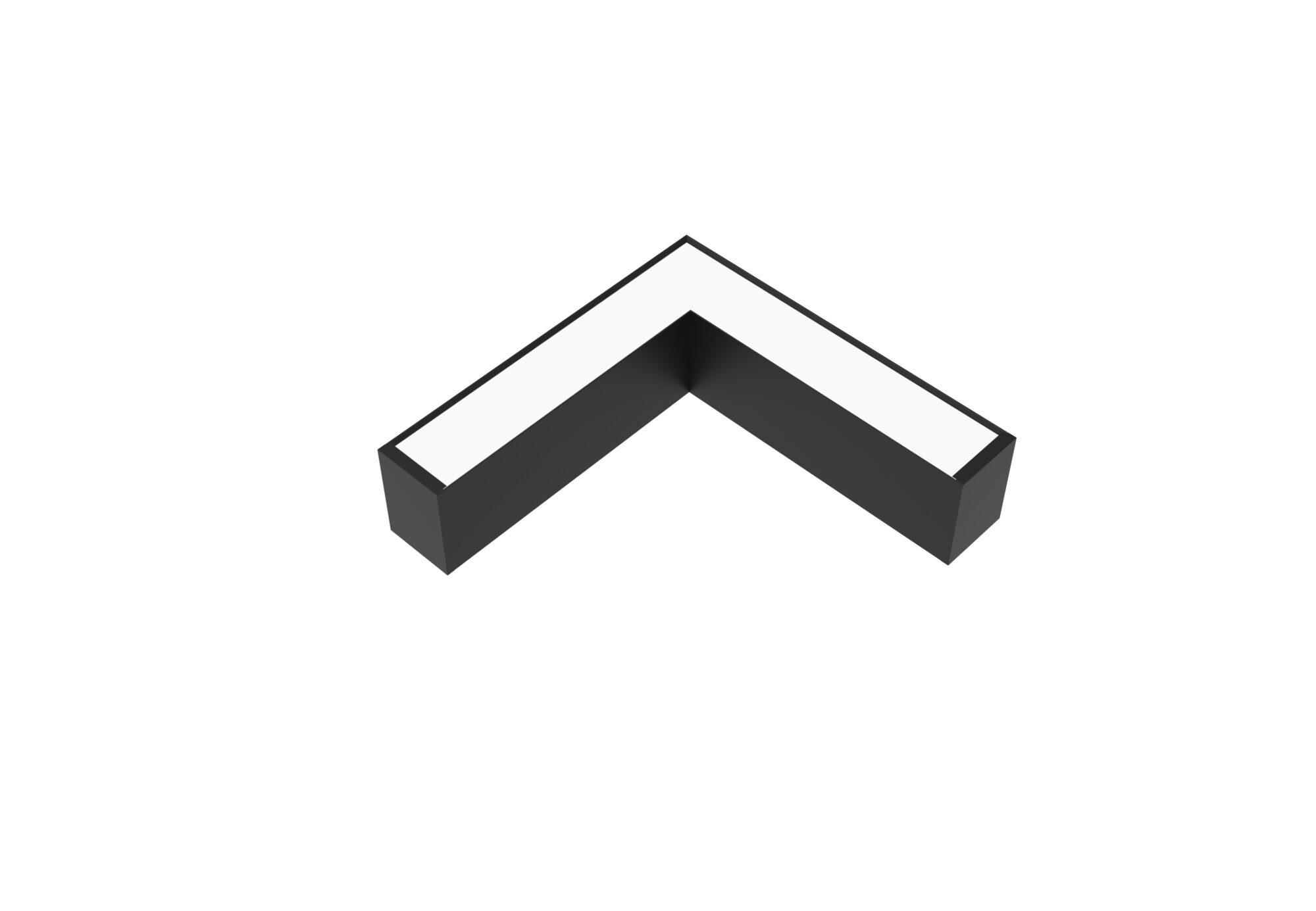

- Y, T, L, V fully lit connector blocks available.
- Linkable up to 60M or Power<2400W
- Multiple Mounting Options (Kit provided with each fitting)
- Prismatic Diffuser
- Aluminium Housing

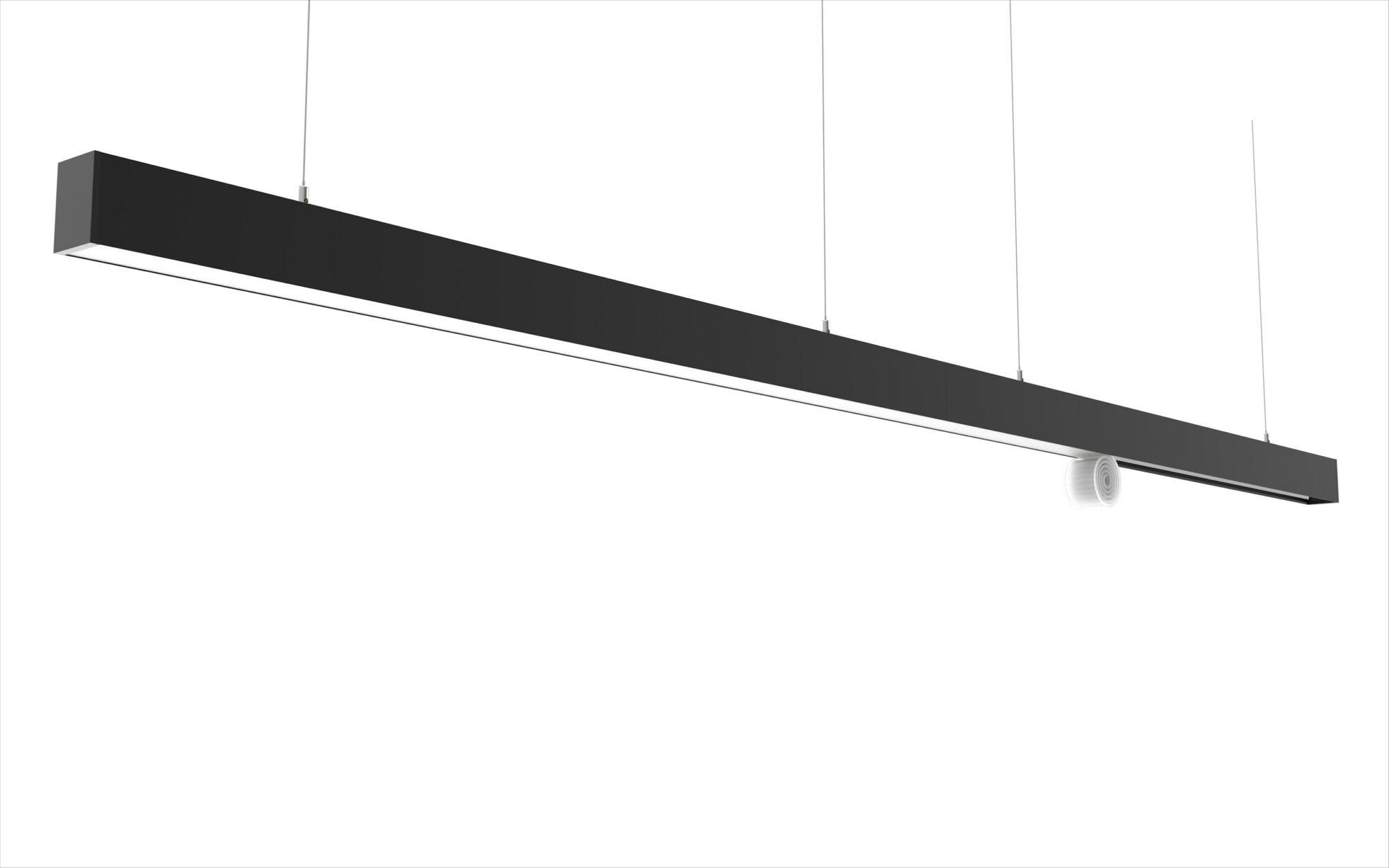

- Microwave Sensor Available
- Emergency Available (4FT+)
- Up Light Attachment Available

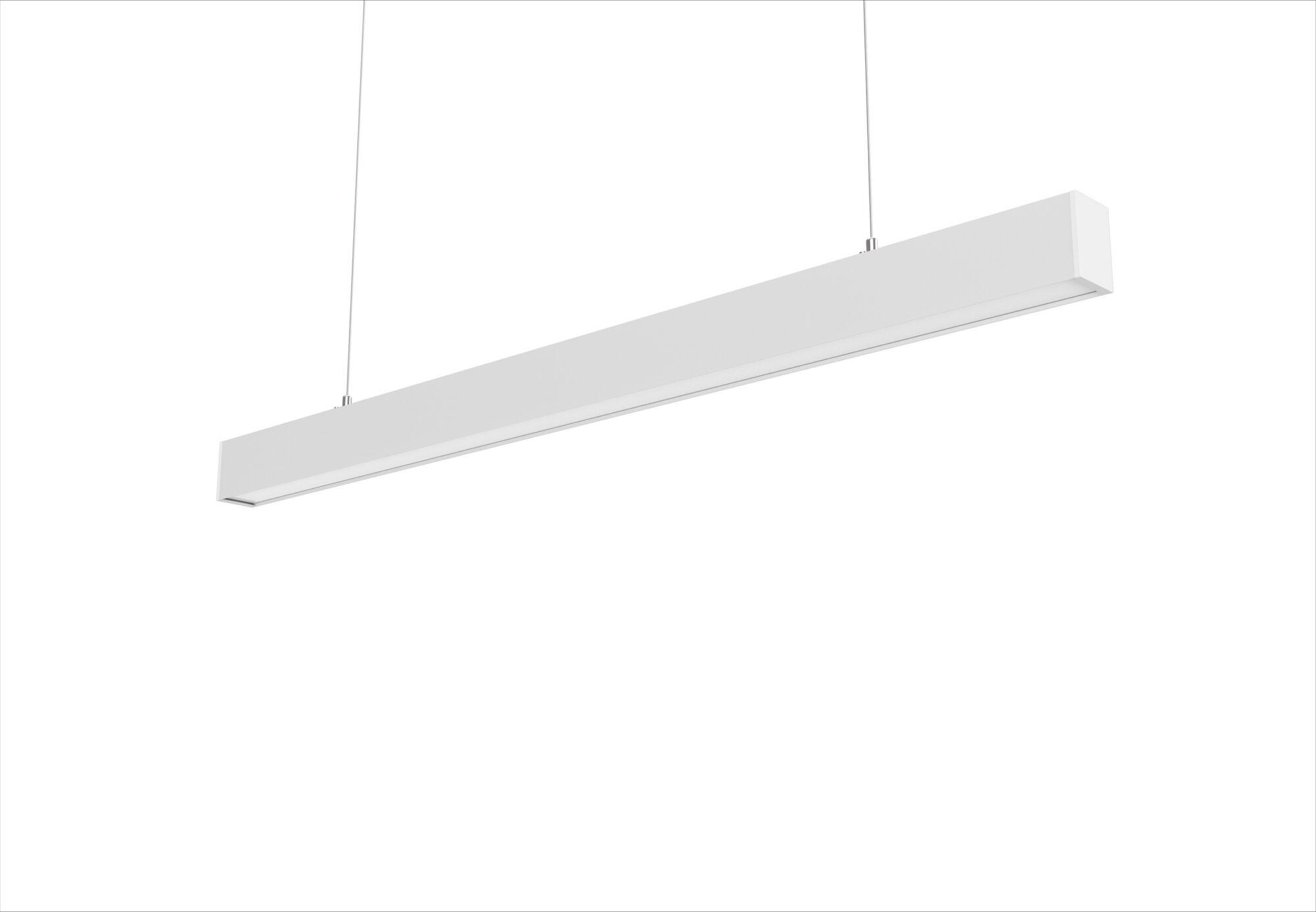

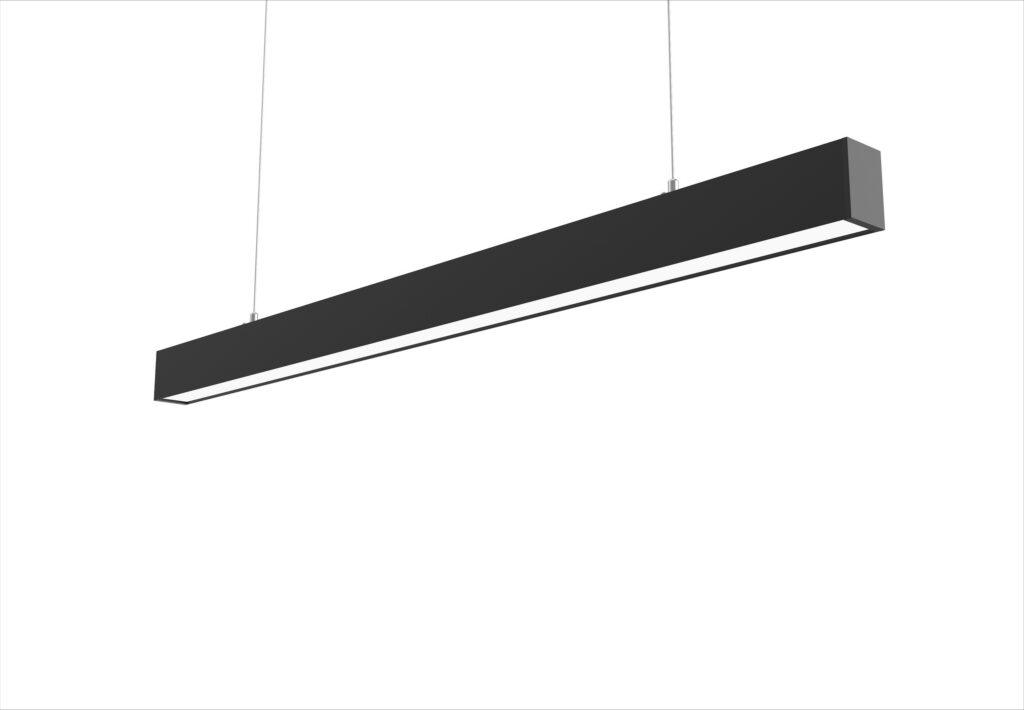

- Available in Black and While
- 5 Years Warranty

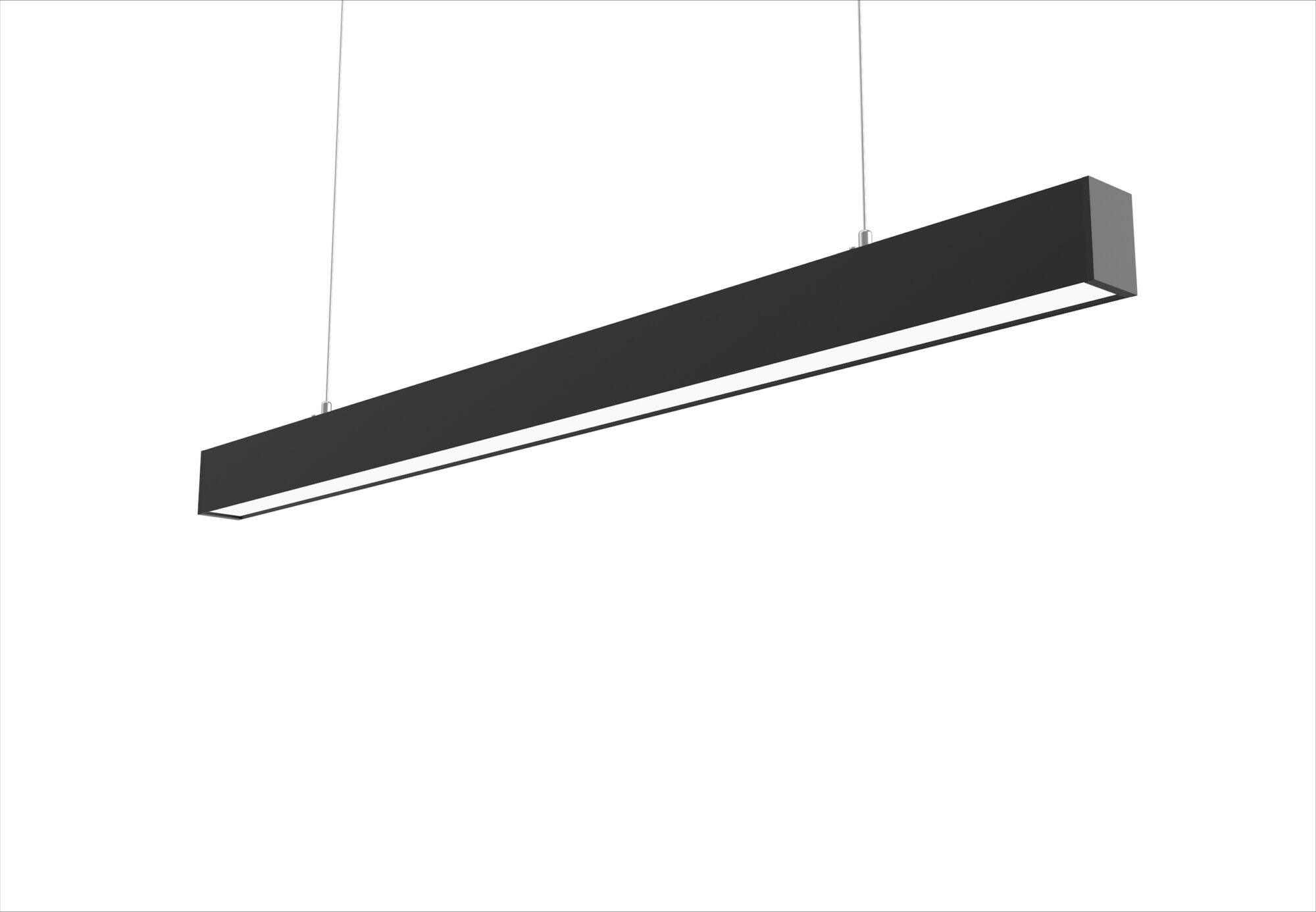

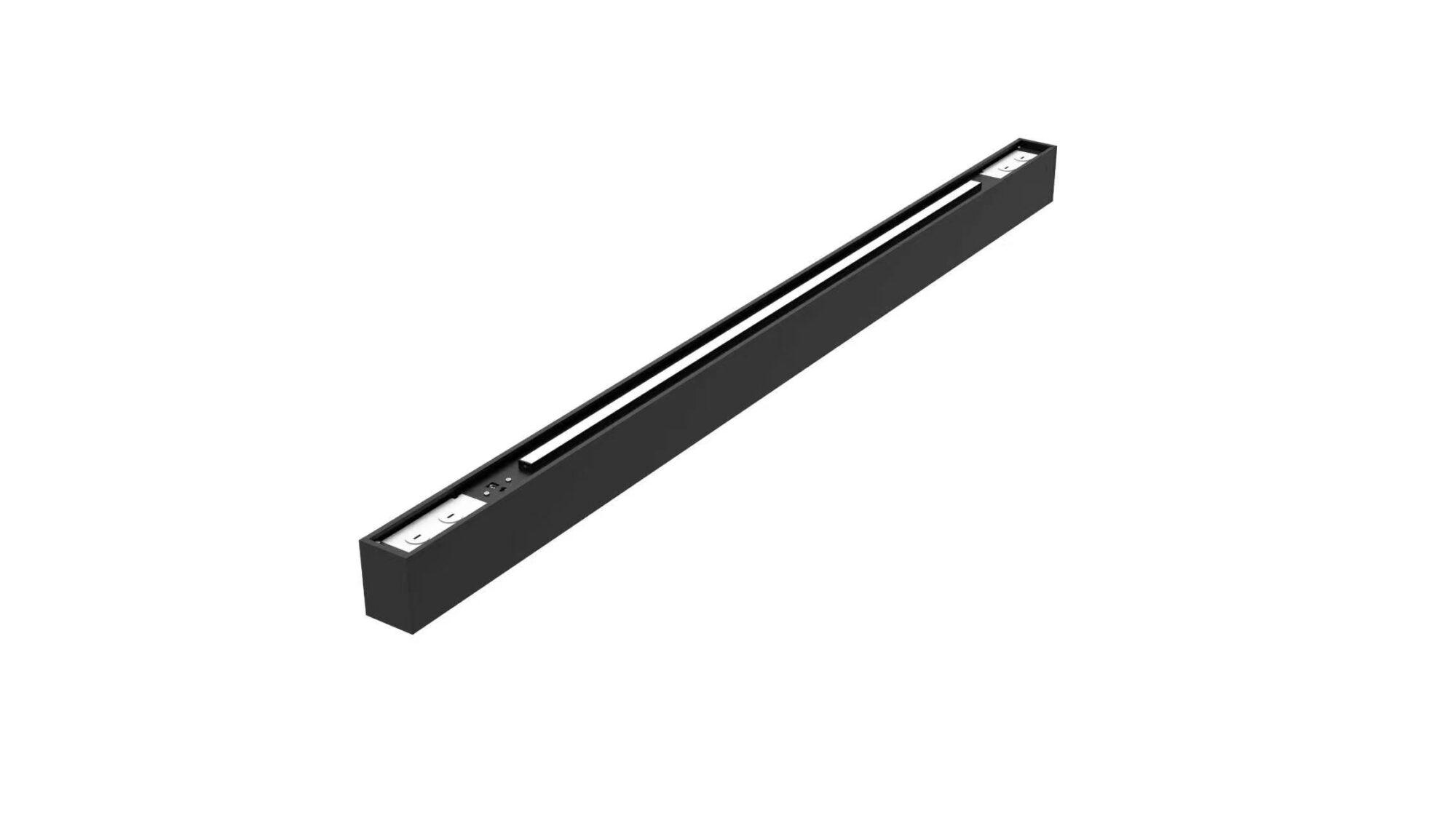

The Vega 3CCT 3PWR is a versatile linkable linear LED fitting designed for a wide range of commercial and industrial applications. Featuring three selectable wattages and three selectable colour temperatures (3000K, 4000K and 6500K), the Vega provides lighting performance from a single fitting.

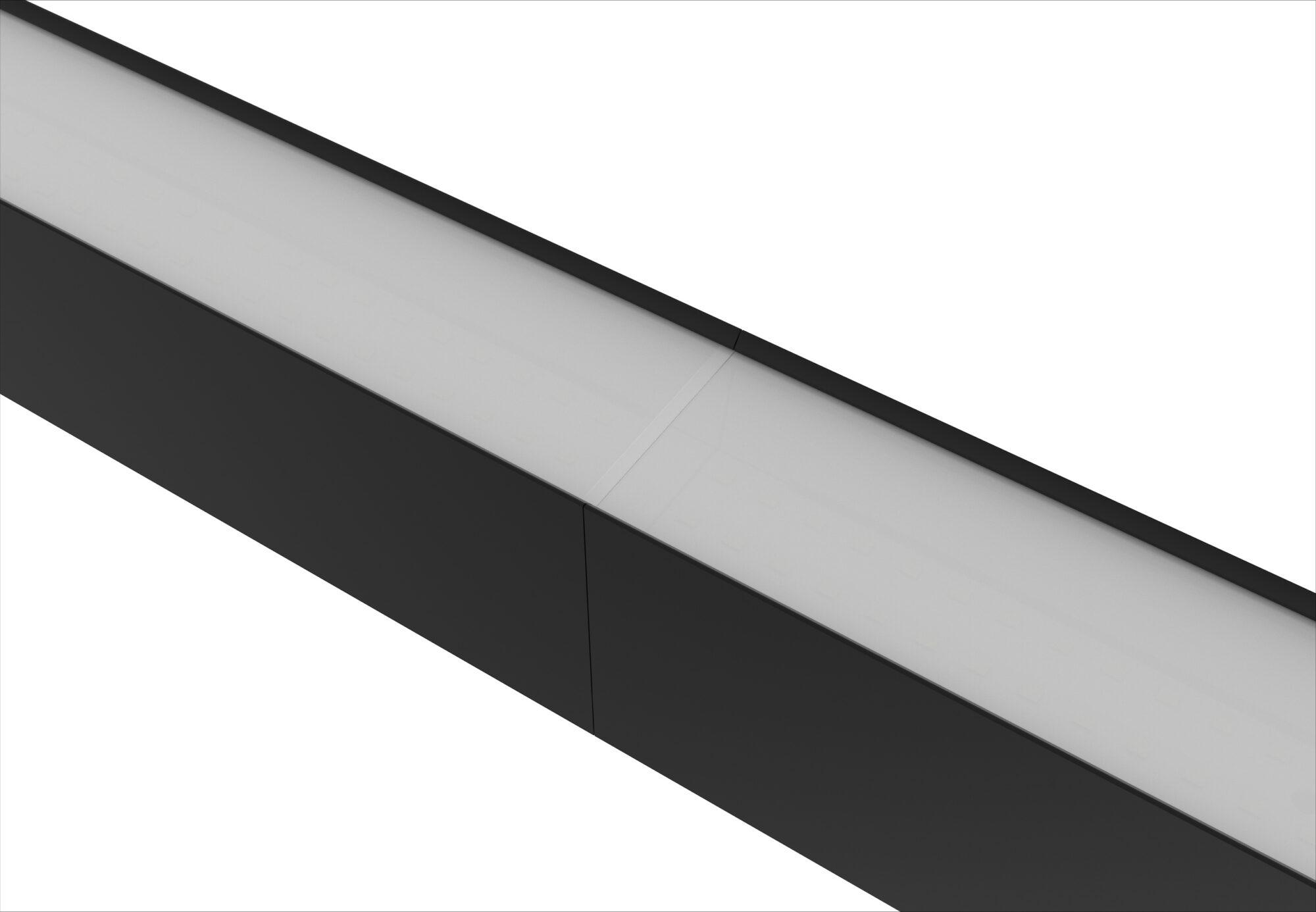

Available in 2ft, 4ft, 5ft and 6ft lengths, with outputs up to 10,400 lumens, the Vega delivers efficient, uniform illumination through its prismatic diffuser and 95° beam angle. Multiple mounting options and L, V, T and Y fully lit connectors allow fittings to be configured into a variety of continuous lighting layouts.
The Vega can be linked up to 60 metres or 2400W and is available in black or white. Microwave sensor, emergency and uplight options are also available, making it a highly adaptable solution for commercial, retail, office and industrial environments.
Read more
-
Beam Angle
95°
-
Input
180-264V
-
Life Hours
50,000
-
Dimmable
Yes
-
Colour Temperature
3000K 4000K 6500K
| 2ft | 4ft | 5ft | 6ft | |
|---|---|---|---|---|
| Part Number Black | VE1-2TB | VE1-4TB | VE1-5TB | VE1-6TB |
| Part Number White | VE1-2TW | VE1-4TW | VE1-5TW | VE1-6TW |
| Selectable Wattage | 15/20/30 | 40/50/60 | 50/65/80 | 40/50/60 |
| Max Wattage | 30W | 60W | 80W | 60W |
| Selectable Colour Temperatures | 3000,4000,6500K | 3000,4000,6500K | 3000,4000,6500K | 3000,4000,6500K |
| Max Lumens | 3900 | 7800 | 10400 | 7800 |
| Dimensions (mm) | 600 x 50 x 70 | 1200 x 50 x 70 | 1500 x 50 x 70 | 1800 x 50 x 70 |
| Uplights | VE1-2UP | VE1-4UP | VE1-5UP | VE1-6UP |
| Emergency Kit | Not Available | VE1-EM40 | VE1-EM60 | VE1-EM40 |
| Sensor Black | VE1-MWB | VE1-MWB | VE1-MWB | VE1-MWB |
| Sensor White | VE1-MWW | VE1-MWW | VE1-MWW | VE1-MWW |
| Connectors | L | V | T | Y |
| Black | VE1-LCONB | VE1-VCONB | VE1-TCONB | VE1-YCONB |
| White | VE1-LCONW | VE1-VCONW | VE1-TCONW | VE1-YCONW |
