Triac Dimmable Driver
- Constant current mode output with multiple levels selectable by dip switch
- Dimming function: Triac/phase cut dimming
- Work with leading or trailing edge Triac Dimmer
- *(On key: leading edge; 1 key: training)
- Built-in active PFC function
- Efficiency up to 80%
- Full protection plastic housing easy installation
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
- Strong compatibility, flicker-free dimming
Engineered for flawless phase-cut integration, these drivers offer dual compatibility, working seamlessly with both leading-edge and trailing-edge Triac dimmers. Integrated active PFC (Power Factor Correction) ensures an exceptional energy efficiency rating of up to 83%, delivering clean, whisper-quiet, and flicker-free dimming down to low ambient thresholds. Encased in a fully isolated, IP20-rated plastic housing, the drivers utilize free air convection for heat dissipation and come with built-in protection against short circuits, overloads, and over-voltage. They are the ideal choice for demanding architectural LED lighting, display fixtures, and moving sign applications.

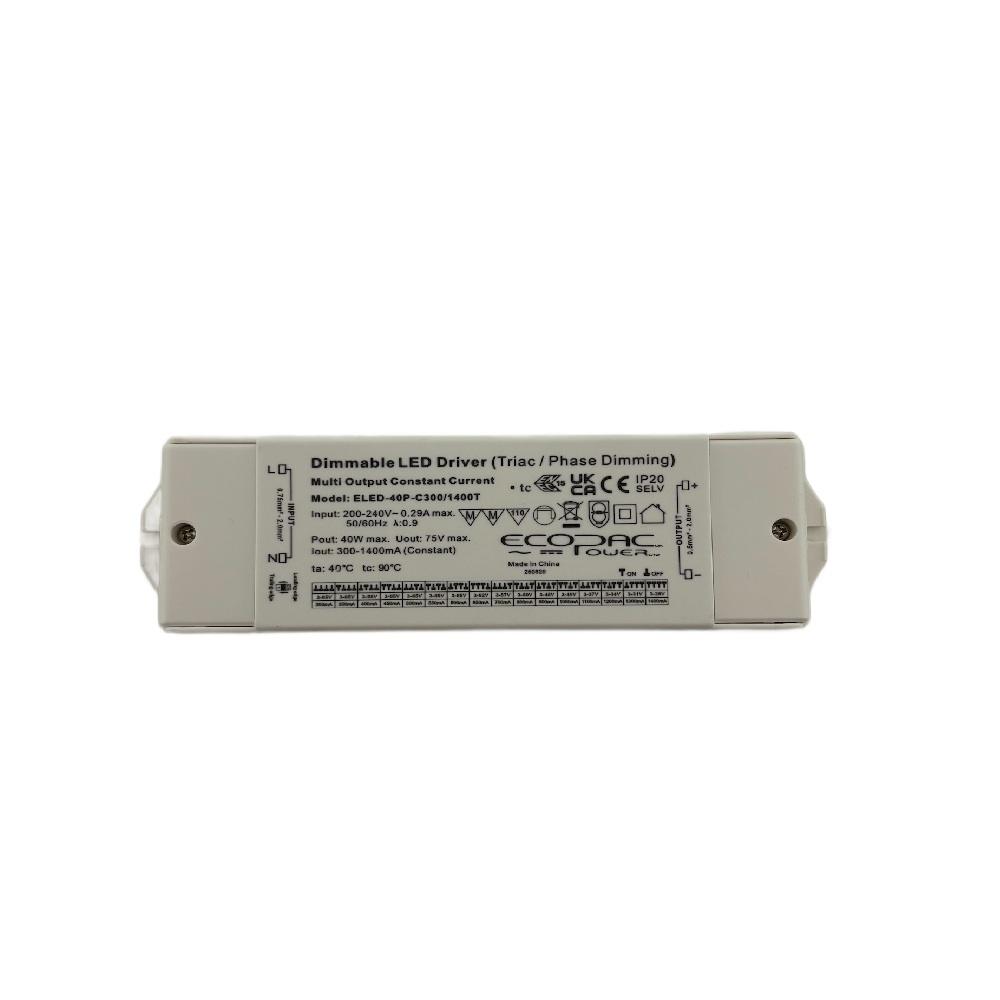

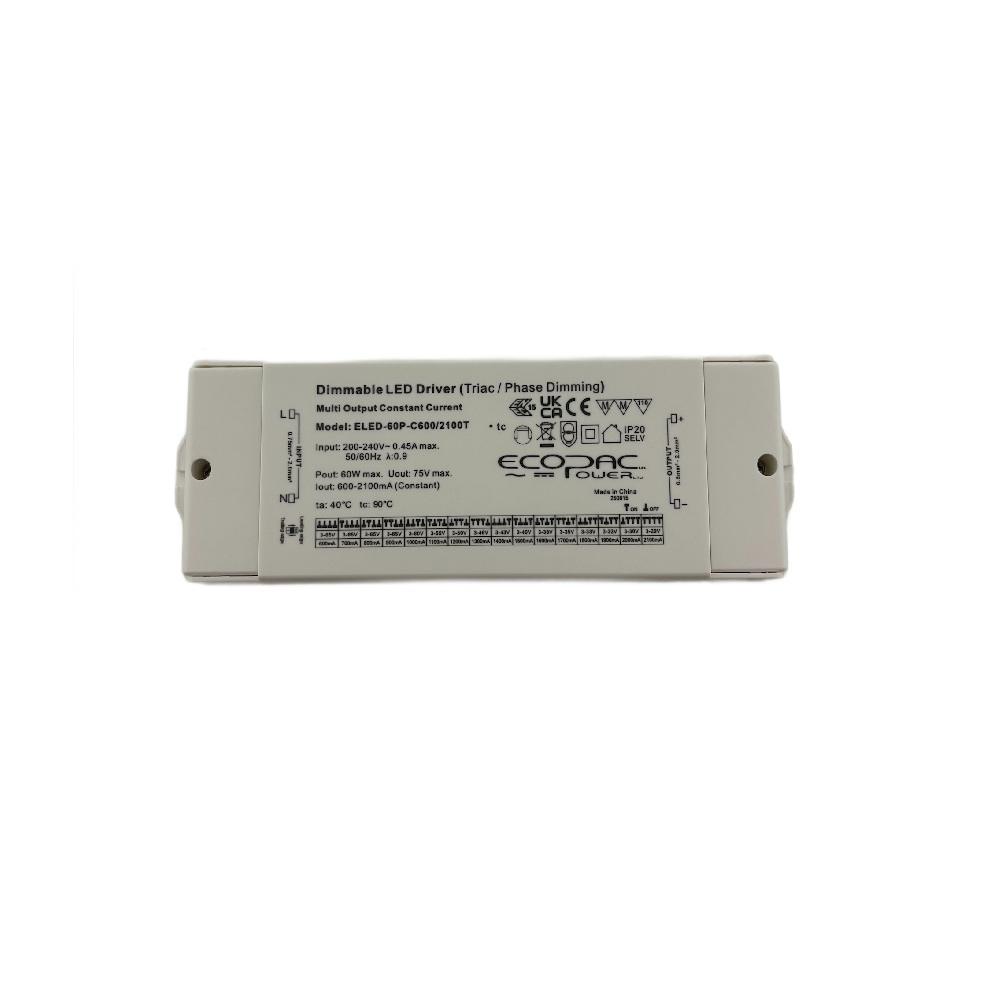

| Part Number | ELED-40P-C300-1400T | ELED-60P-C600-2100T |
| Input Voltage | 100-240V | 100-240V |
| Frequency Range | 47-63Hz | 47-63Hz |
| Inrush Current | 2.98A (Twidth=7.6 230VAC) | 30.4A (Twidth=737 230VAC) |
| Power Factor (Typ.) | 0.95 | 0.98 |
| Full Load Efficiency (Typ.) | 78% | 83% |
| AC Current (Typ.) | 0.15A | 0.45A |
| Leakage Current | <0.50mA/220VAC | <0.50mA/220VAC |
