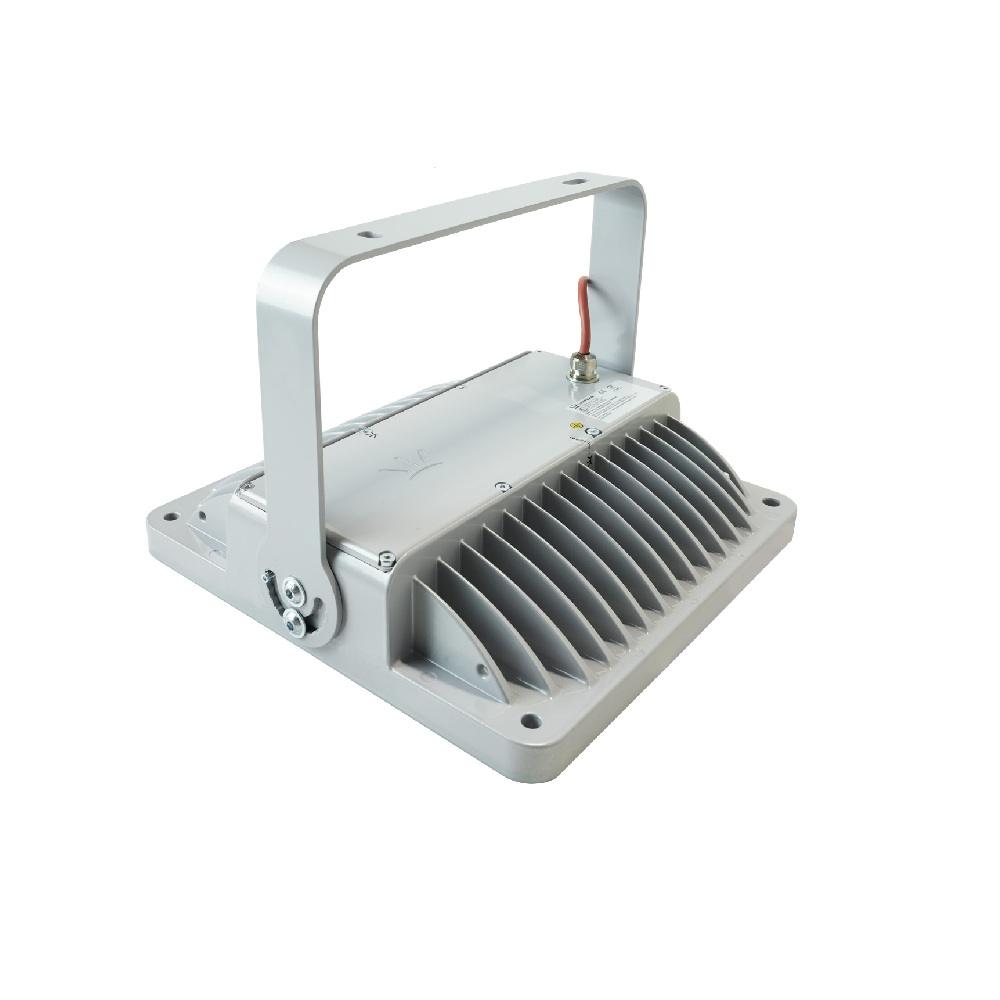

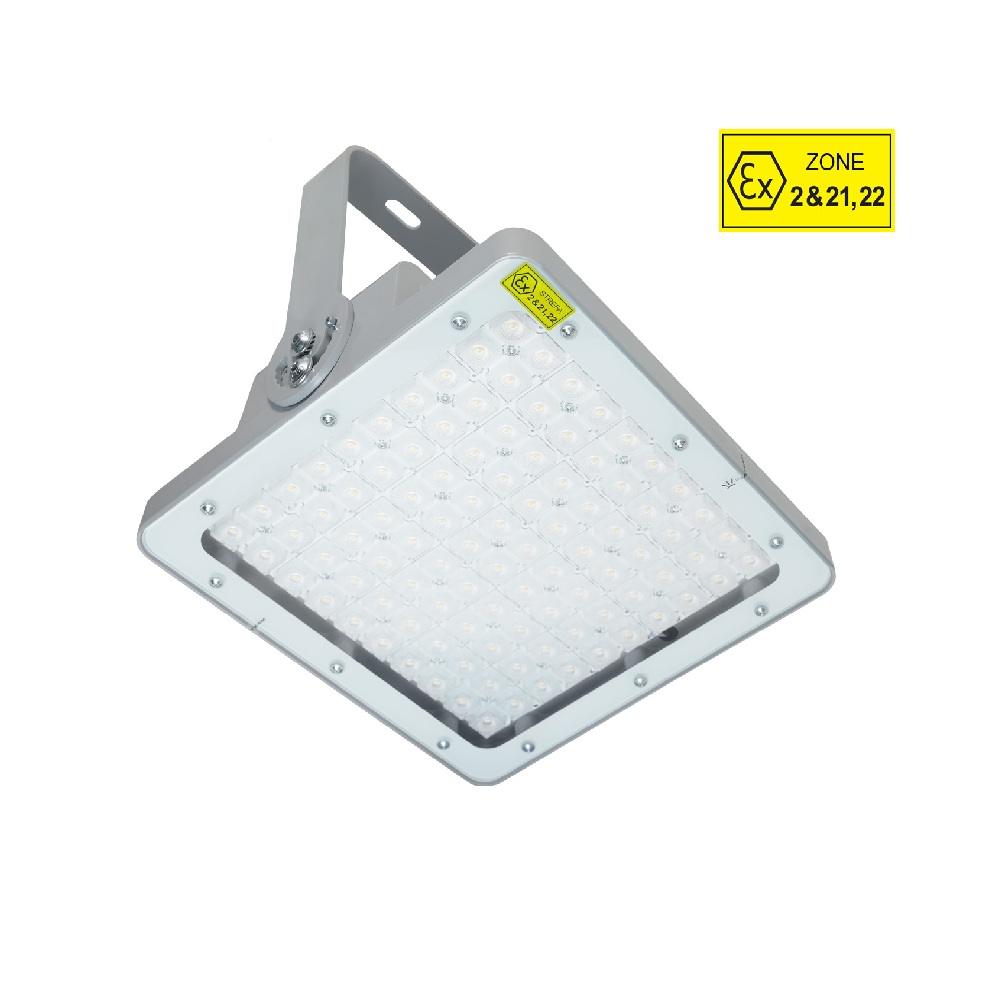

Sentinel – ATEX Floodlight – Zone 2,22,1
- Designed to work in zones 2, 21 & 22
- OBAC 24 ATEX 0435X certified
- IECEx OBAC 24.0005X certified
- Luminous efficacy up to 165 lm/W
- Lifetime up to 100 000 h (L80B10)
- Three mounting methods (on handle, suspended, single-point)
- Equipped with tempered glass panel
- Easy assembly and setting (adjustable handle)
- Can be adapted to any control system
- 2 Year Warranty
Engineered for volatile industrial environments, our premium explosion-proof LED luminaire offers uncompromised safety and efficiency. Featuring OBAC ATEX and IECEx certifications, it is purpose-built to operate seamlessly in hazardous Zones 2, 21, and 22.
-
Input
230 V
-
Dimmable
Yes
-
Colour Temperature
4000K or 5700K
-
Life Hours
100000
-
Beam Angle
55°, 94°, 37°/103°
| Part Number (4000K) | SNL1-50N | SNL1-70N | SNL1-90N | SNL1-100N | SNL1-130N | SNL1-150N |
| Part Number (5700K) | SNL1-50C | SNL1-70C | SNL1-90C | SNL1-100C | SNL1-130C | SNL1-150C |
| Max Wattage | 50W | 70W | 90W | 100W | 130W | 150W |
| Max Lumens | 7100 | 10000 | 12800 | 16500 | 20800 | 24700 |
| Lumens Per Watt | 142 | 143 | 142 | 165 | 160 | 165 |
| Approx Weight (kg) | 7 | 7 | 7 | 7 | 7 | 7 |
| Operating Temperature | -40° To +60° | -40° To +60° | -40° To +60° | -40° To +60° | -40° To +60° | -40° To +60° |
| Dimension (mm) | 317 x 317 x 84 | 317 x 317 x 84 | 317 x 317 x 84 | 317 x 317 x 84 | 317 x 317 x 84 | 317 x 317 x 84 |
