LED Dimmable Drivers
- Suitable for Panels
- Support central emergency application
- Support self-contained emergency application
- Emergency lighting
- Constant light output function
- Corridor dimming
- Programming via DALI
- Protective features

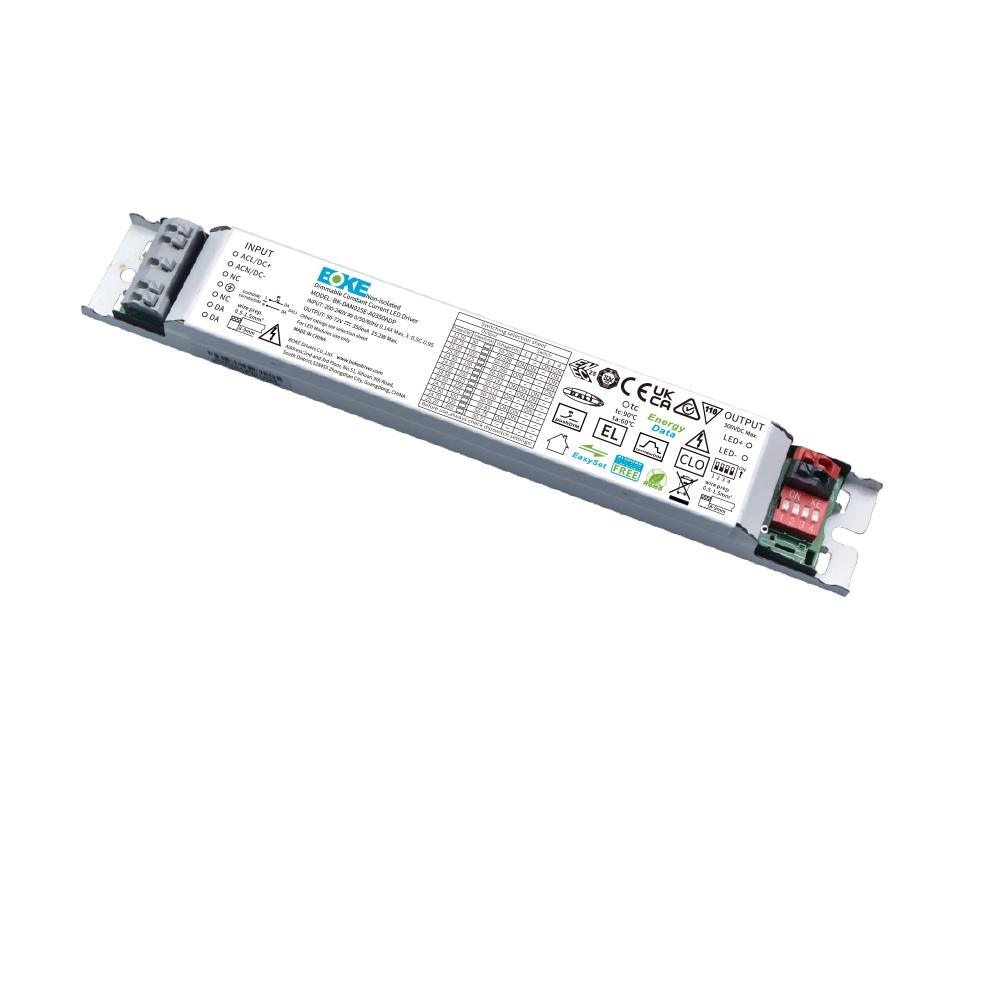

The BOKE DAN Series (DP Suffix) offers 40W (BK-DAN040E-A0400ADP) and 60W (BK-DAN060E-A0550ADP) non-isolated, constant current LED drivers designed for high-end commercial linear lighting. These DALI-2 (DT6) and pushDIM compliant drivers deliver 1%–100% amplitude modulation dimming, featuring patented HPC technology for consistent, flicker-free brightness and intelligent energy management, including CLO and EnergyData reporting.
| Part Number | BK-DAN040E-A0400ADP | BK-DAN060E-A0550ADP |
| Input Voltage | 200-240VAC | 200-240VAC |
| Output Power | 40W | 60.5W |
| Output Voltage | 50-250V | 50-250V |
| Output Current | 0.05-04A | 0.05-055A |
| PF | 1 | 1 |
| Efficiency | 92% | 92.5% |
| THD | 7.5% | 9% |
| Ta | 60 | 60 |
| Tc | 90 | 90 |
| Dimensions | 280 x 30 x 21 mm | 280 x 30 x 21 mm |
