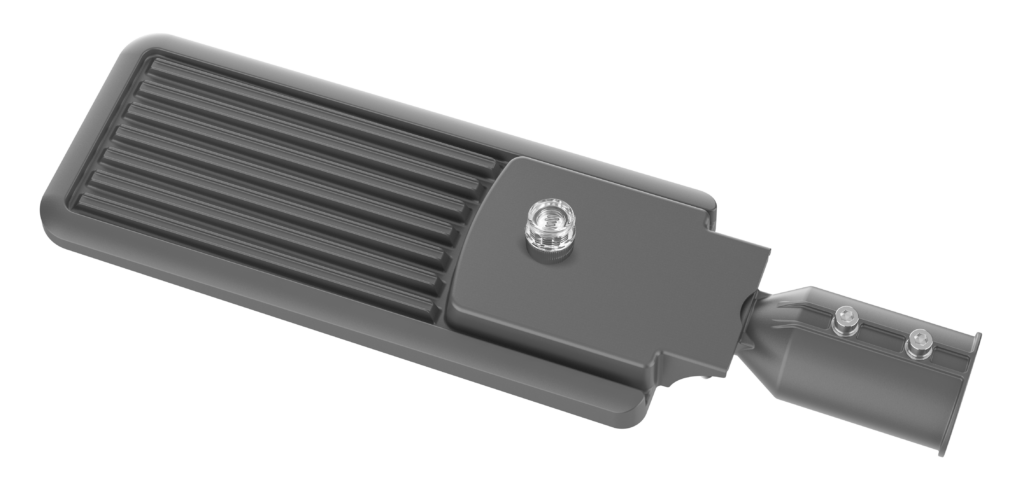

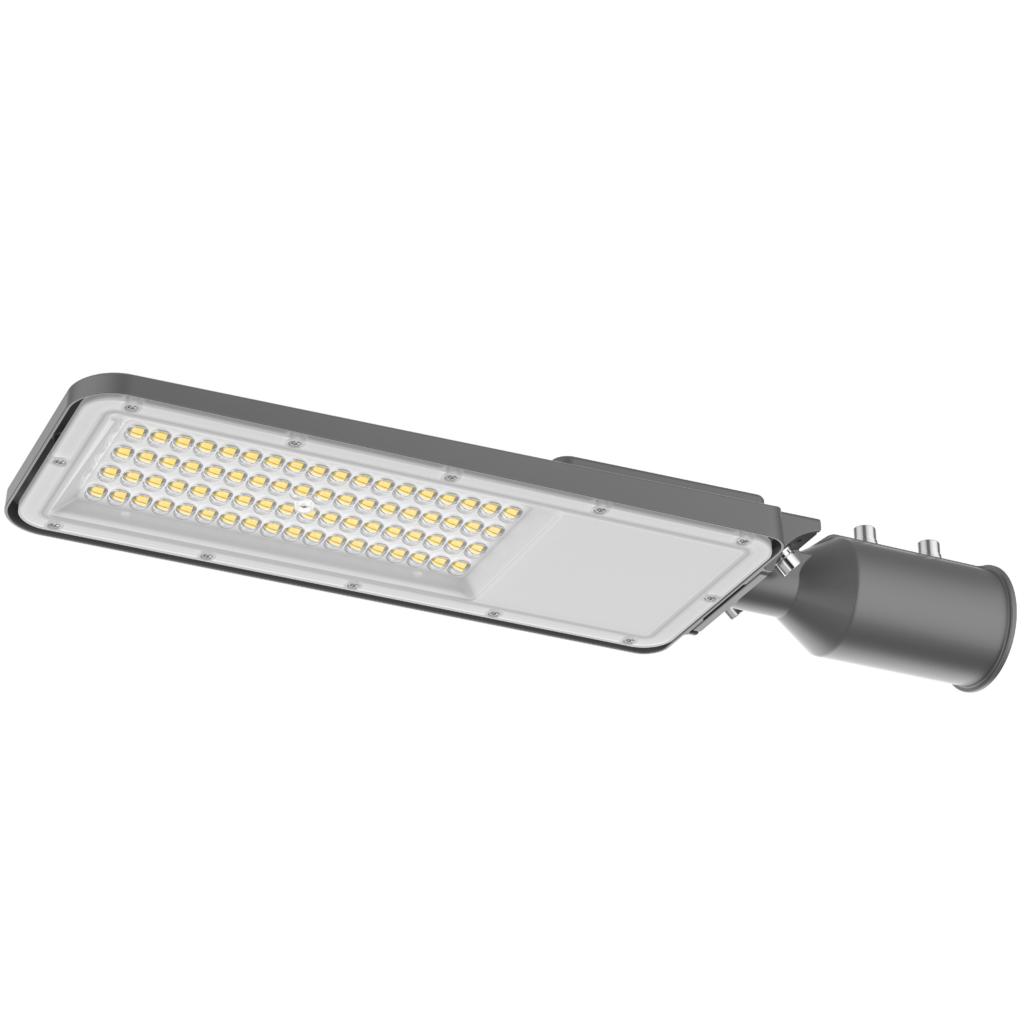

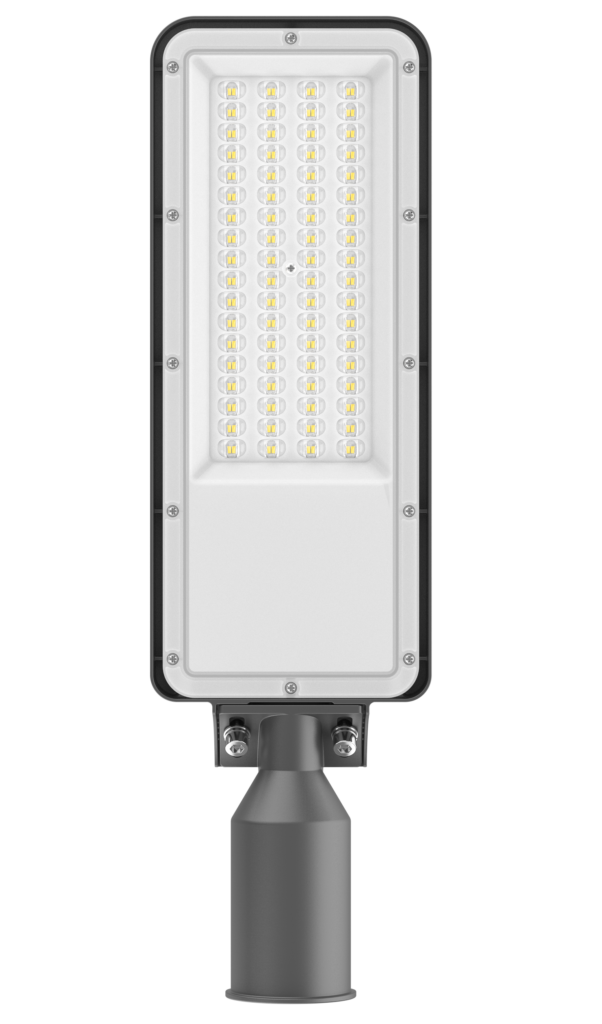

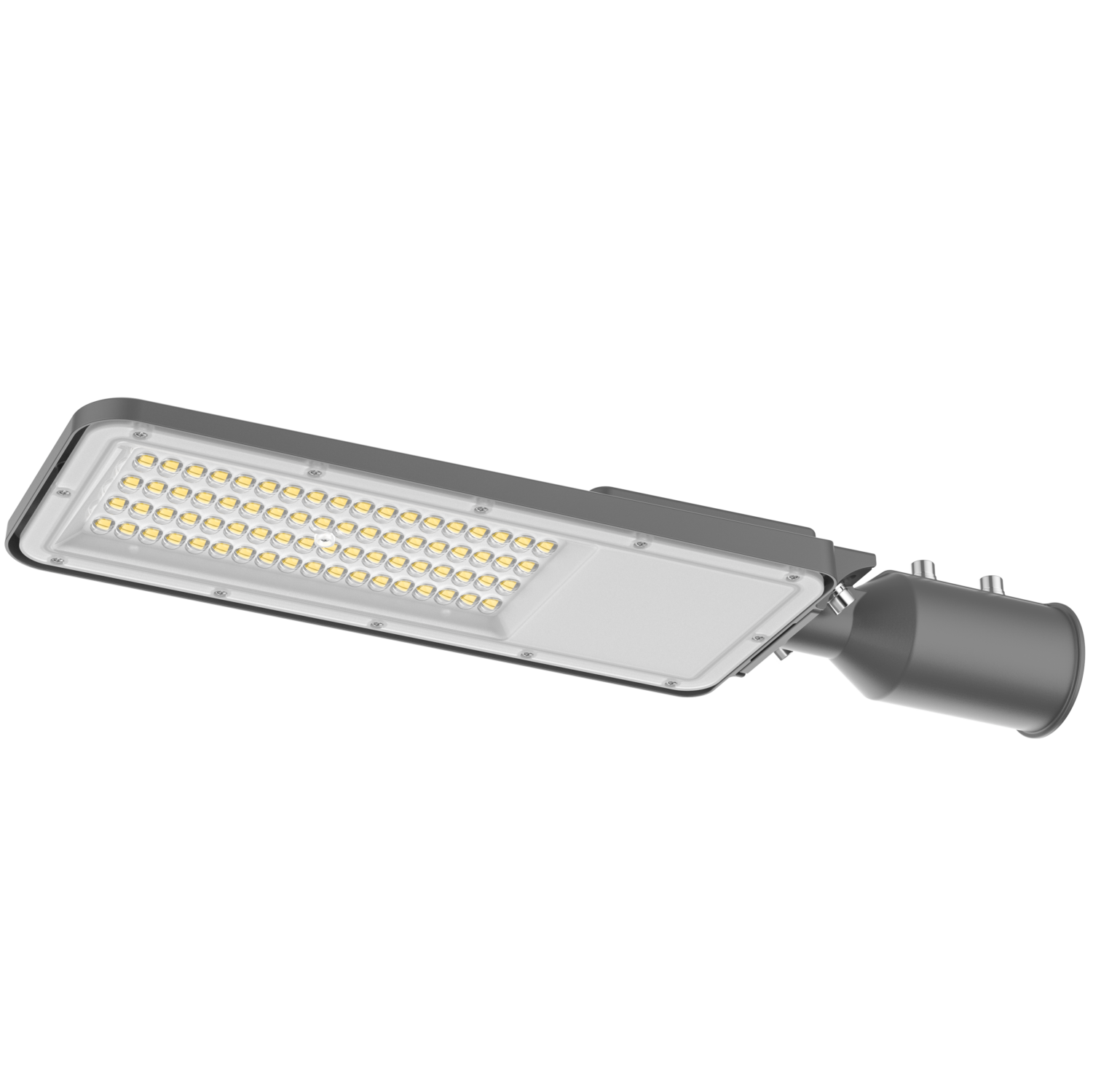

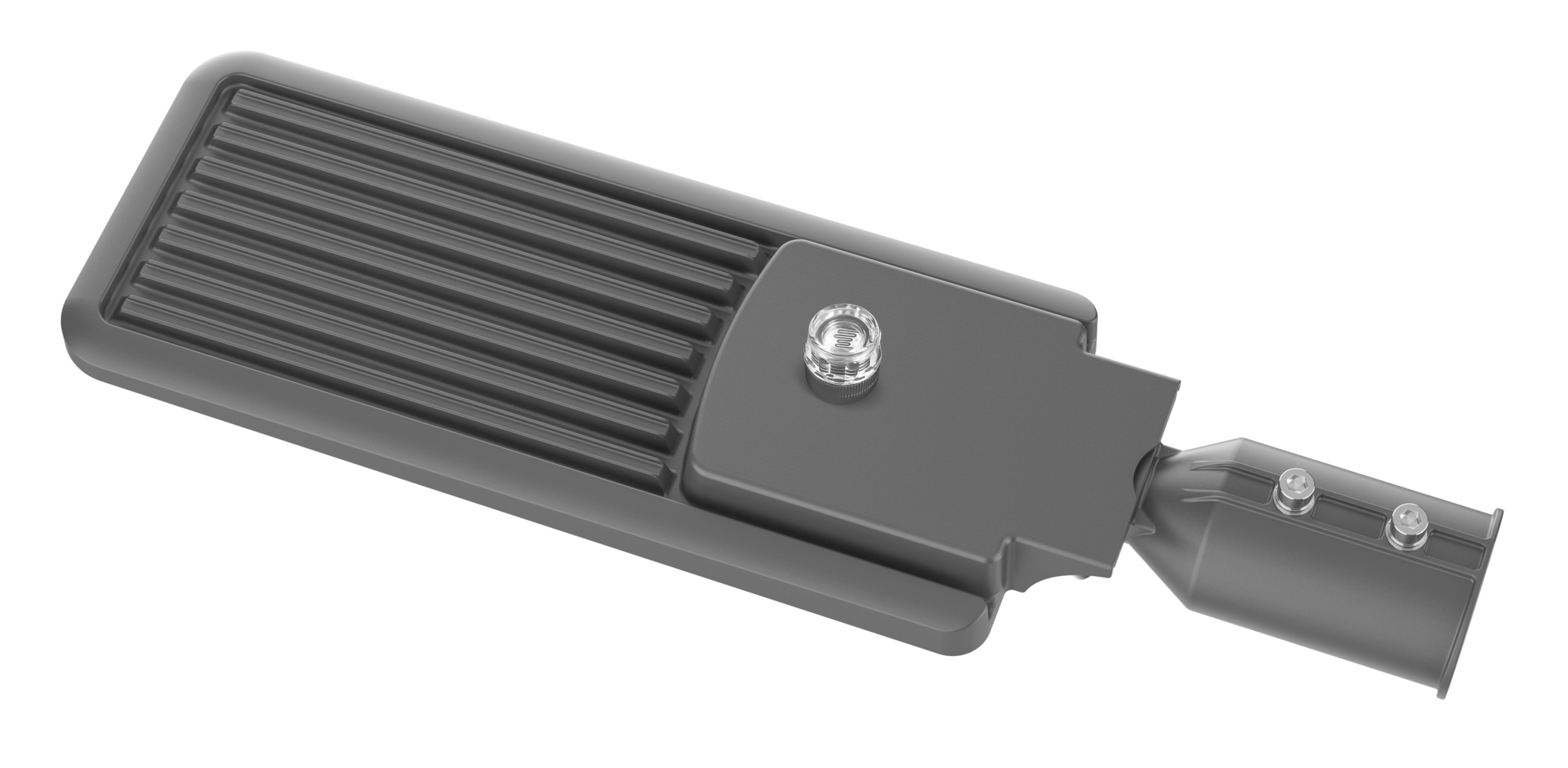

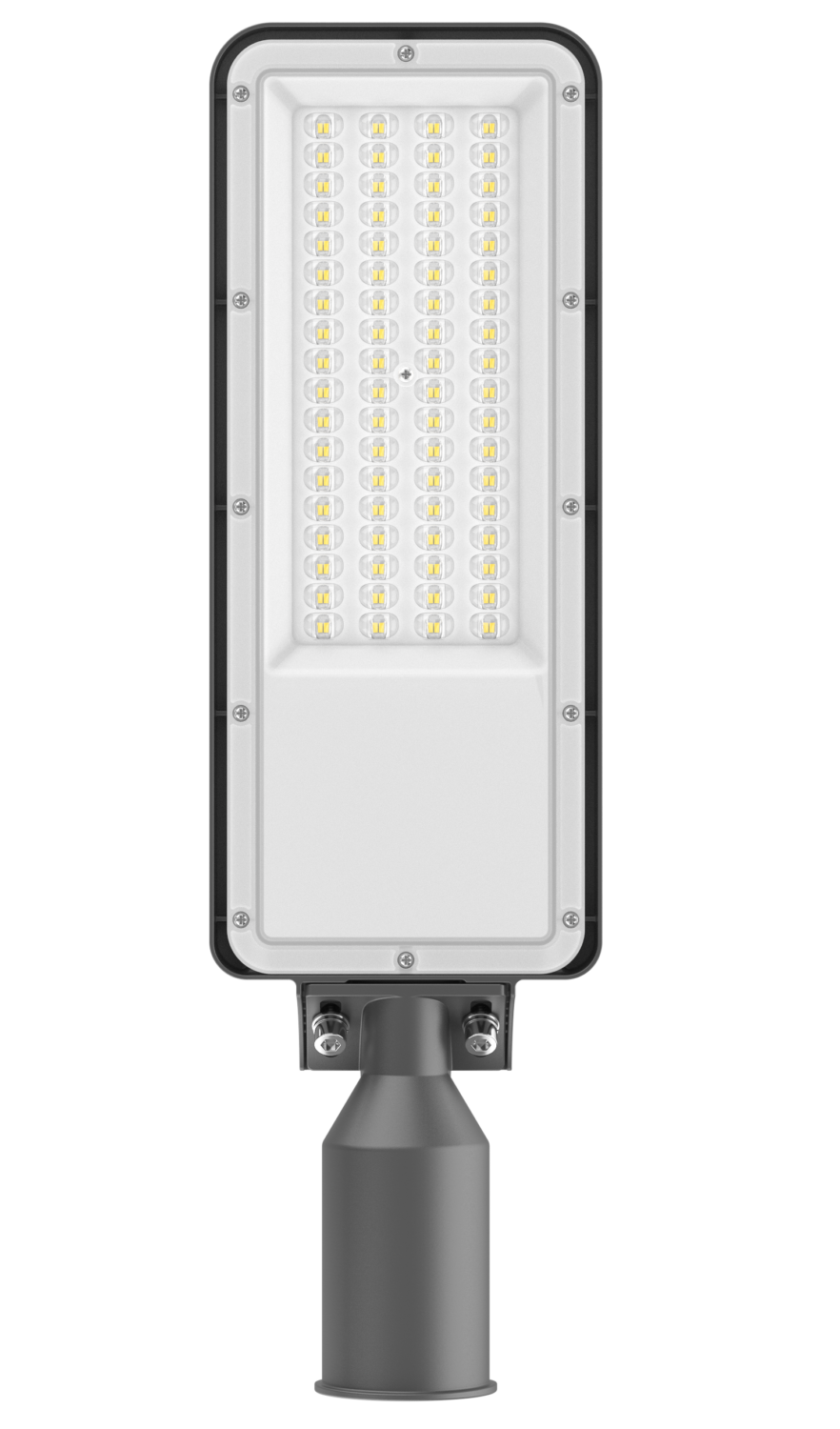

Heaton II Street Light 30-150W

  • Optional built-in Photocell with override capability
  • Asymmetric lens type II-M
  • Vertical And Horizontal Mount
  • 4KV Surge protection
  • Installing diameter: 30-60mm
  • Supplied with 60cm cable
  • 3 year warranty

Suitable for use in car parks, walk ways, drive ways, public areas and domestic use. The range comes with a built-in photocell, and a 4th wire which can be used as a switch live to bypass or override the photocell.

Downloads

  • Beam Angle
    Beam Angle

    45-145°

  • Input
    Input

    220-240V

  • Life Hours
    Life Hours

    30000

  • Dimmable
    Dimmable

    No

  • Colour Temperature
    Colour Temperature

    4000K

Part Number HE2P-30N HE2P-50N HE2P-80N HE2P-100N HE2P-100N
Power Rating30W50W80W100W150W
Max Lumens3600600096001200018000
Lumens Per Watt120120120120120
Power Factor>90>90>90>90>90
Dimensions (mm)300 x 140 x 55380 x 160 x 57480 x 230 x 63480 x 230 x 63TBC
Max Power30W51W80W101W151W
