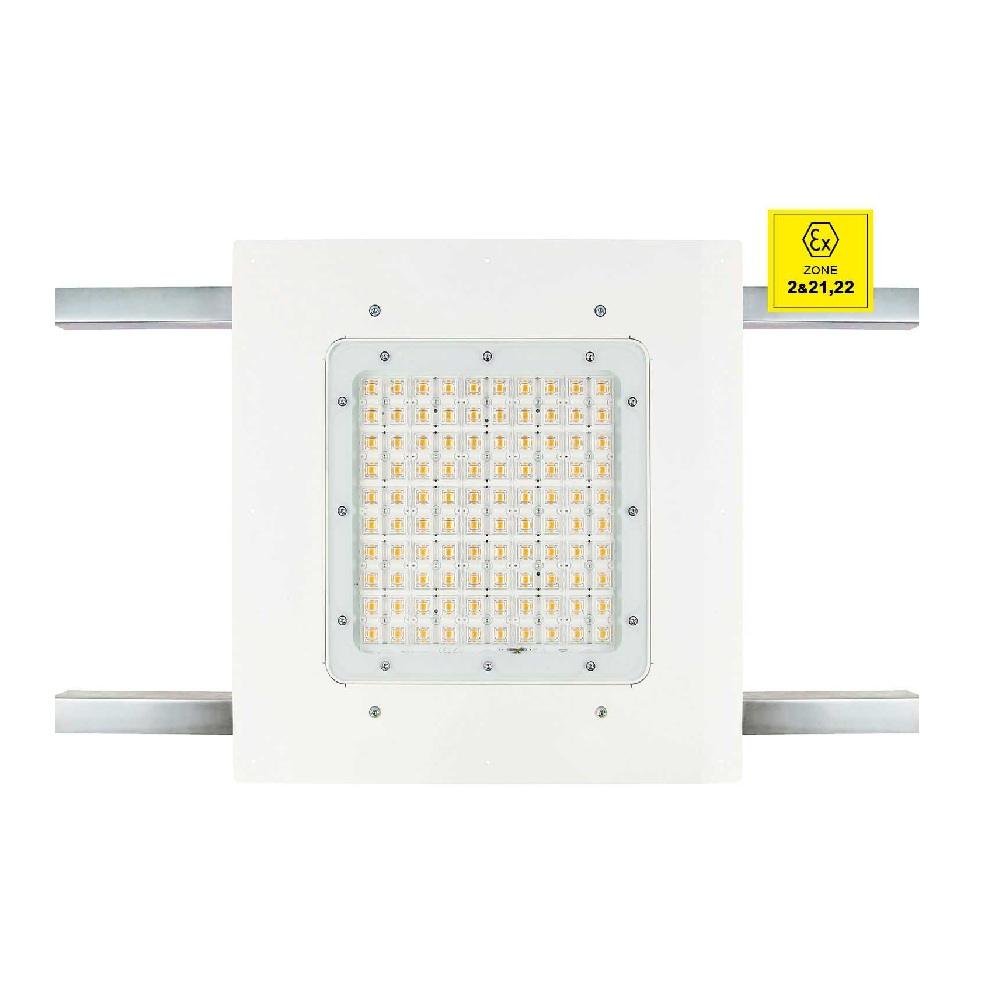

Fortress – 2CCT – ATEX High Bay – Zone 2,22,1

  • Designed to work in zones 2, 21 & 22
  • OBAC 24 ATEX 0435X certified
  • IECEx OBAC 24.0005X certified
  • Luminous efficacy up to 165 lm/W
  • Lifetime up to 100 000 h (L80B10)
  • Tempered glass for extra protection
  • Easy installation and adjustment (mounting brackets included)
  • Masking panel made to measure
  • Can be adapted to any control system
  • Dedicated optics with wide range of beam angle
  • 5 Years Warranty

Designed specifically for challenging high-ceiling applications in hazardous locations, our ATEX-certified LED High Bay delivers superior illumination where safety is critical. This high-performance fixture carries OBAC ATEX and IECEx certifications, ensuring compliant operation in volatile gas and dust environments across Zones 2, 21, and 22.

Engineered with dedicated optics providing a wide range of beam angles, this high bay maximizes light distribution and reduces glare in vast industrial spaces. It delivers a class-leading luminous efficacy of up to 165 lm/W and an exceptional L80B10 lifetime of up to 100,000 hours, dropping your maintenance and energy expenses. The rugged housing features tempered glass for extra protection and includes a made-to-measure masking panel to suit your specific installation layout. Complete with included mounting brackets for easy installation and adjustment, it seamlessly adapts to any control system and is backed by our 2-year warranty.

  • Input
    Input

    230 V

  • Dimmable
    Dimmable

    Yes

  • Colour Temperature
    Colour Temperature

    4000K or 5700K

  • Life Hours
    Life Hours

    100000

  • Beam Angle
    Beam Angle

    55° i 94°

Part Number FT1-90N FT1-100N FT1-150N
Max Power90W100W150W
Max Lumens128001650024700
lm\W142165165
Approx Weight (kg)999
Operating Temperature-40° To +40°-40° To +40°-40° To +40°
Dimmension (mm)317 x 317 x 104317 x 317 x 104317 x 317 x 104
