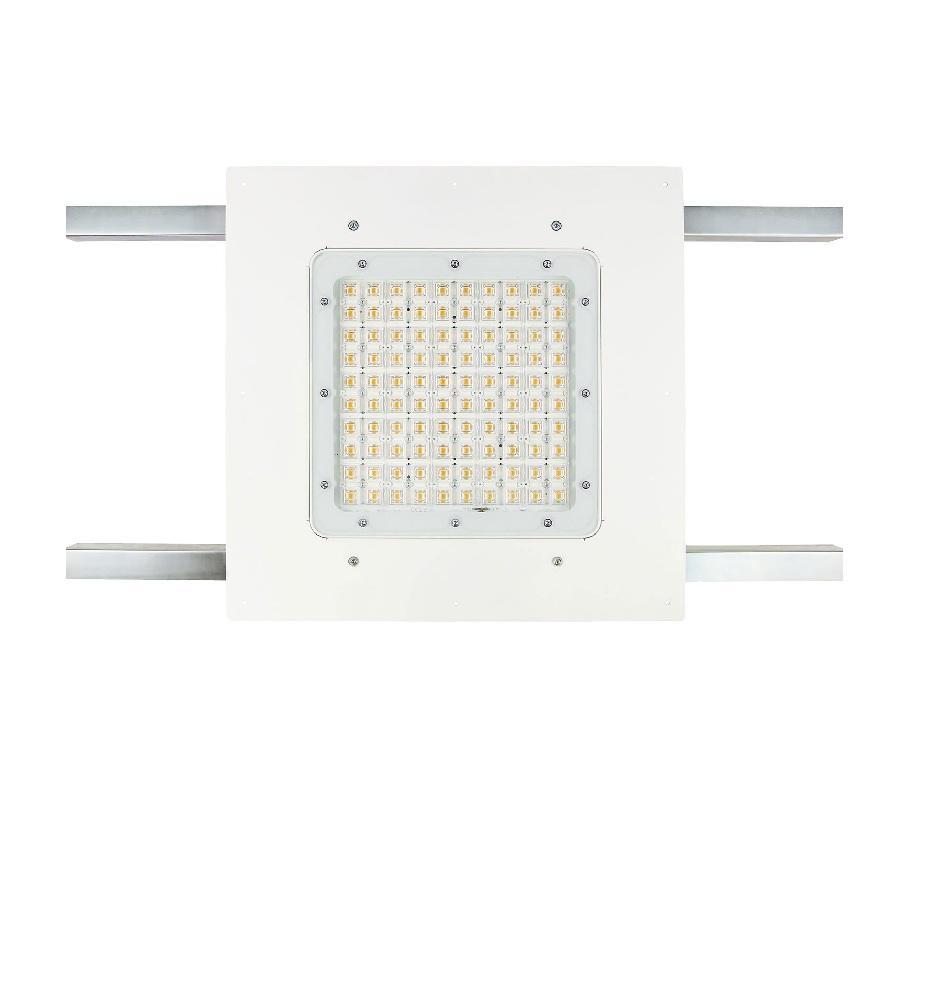

Escot – Under Canopy Light

  • Luminous efficacy up to 165 lm/W
  • Lifetime up to 100 000 h (L80B10)
  • Tempered glass for extra protection
  • Easy installation and adjustment (mounting brackets included)
  • Masking panel made to measure
  • Can be adapted to any control system
  • IK09
  • Dedicated optics with wide range of beam angle

The Escot LED Under Canopy Light is a high-performance lighting solution designed to provide bright, uniform illumination for a wide range of commercial and outdoor covered applications. Ideal for petrol station forecourts, covered walkways, loading bays, parking structures and building entrances, the Escot combines excellent energy efficiency with a sleek, low-profile design.

Manufactured with a robust die-cast aluminium housing and high-quality LED components, the Escot delivers reliable performance with minimal maintenance requirements. Its IP-rated construction ensures dependable operation in demanding outdoor environments, while the wide beam distribution provides excellent visibility and enhanced safety.

Available in multiple wattages to suit different installation requirements, the Escot is an ideal replacement for traditional canopy lighting, helping to reduce energy consumption and maintenance costs without compromising light quality.

  • Input
    Input

    230 V

  • Dimmable
    Dimmable

    Yes

  • Colour Temperature
    Colour Temperature

    4000K or 5700K

  • Life Hours
    Life Hours

    100000

  • Beam Angle
    Beam Angle

    55° i 94°

Part Number ESC1-90N ESC1-100N ESC1-150N
Max Power90W100W150W
Max Lumens128001650024700
lm\W142165165
Approx Weight (kg)999
Operating Temperature-40° To +40°-40° To +40°-40° To +40°
Dimmension (mm)317 x 317 x 104317 x 317 x 104317 x 317 x 104
