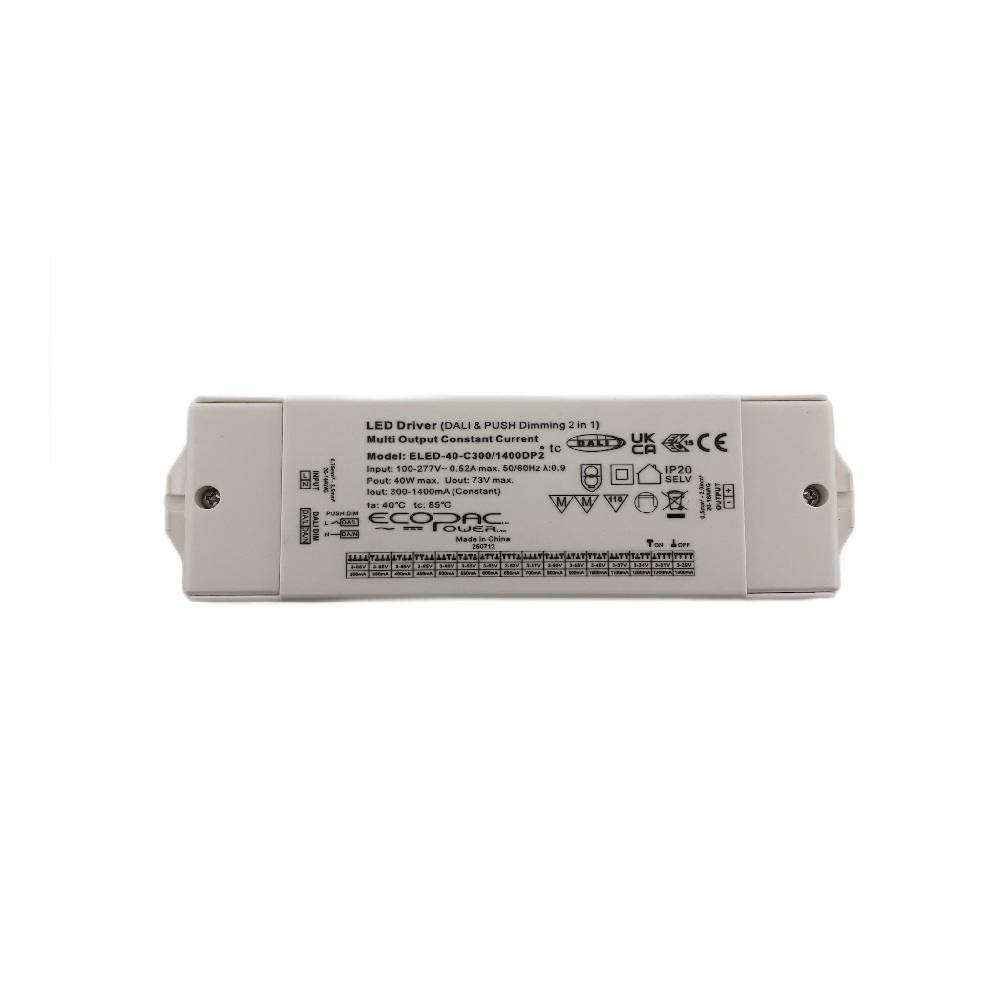

2 in 1 DALI & PUSH Dimming Driver
- Constant current mode output with multiple levels selectable by dip switch
- DALI2 dimming function (IEC63286)
- Compatible with DALI and DALI2 dimming system
- AC input: 100-277VAC
- Built-in active PFC function
- Efficiency up to 86%
- Protections: Short circuit/ Over load/Over temperature
- Cooling by free air convection
- Suitable for intelligent LED lighting
| Part Number | ELED-40P-C300-1400T |
| Input Voltage | 100~277VAC |
| Output Current | 1400mA |
| Output Voltage | 3-29 |
| Frequency Range | 47-63Hz |
| Inrush Current | 5.68A (Twidth=7.2μs 230VAC) |
| Power Factor (Typ.) | 0.97 |
| AC Current (Typ.) | 0.52A |
| Leakage Current | <0.50mA/220VAC |
| Operating Temperature | -40~80°C |
| Dimensions | 171.5 x 54 x 20 mm |
