SPECIFICATION

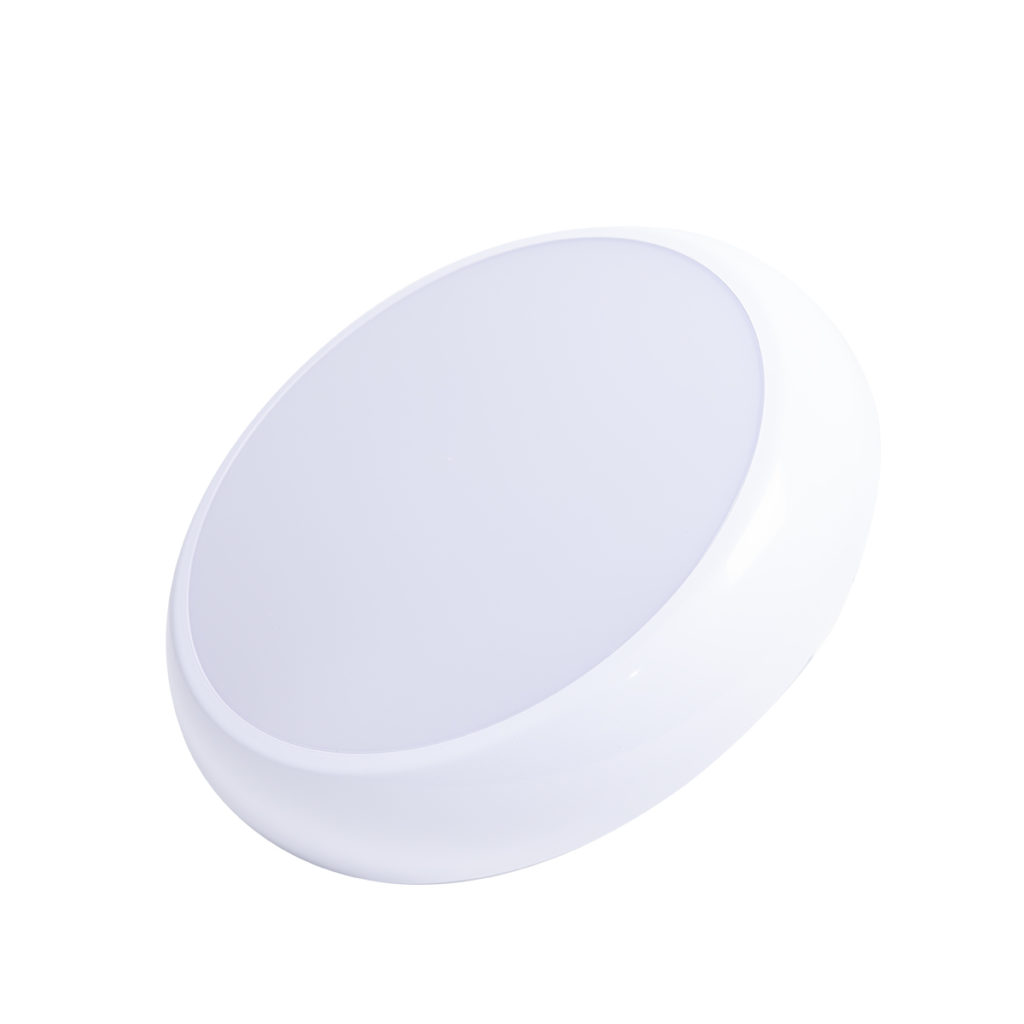

Phoenix II Tri Colour

LED Bulkhead

  • Beam Angle
    Beam Angle

    120°

  • Input
    Input

    220-240V

  • Life Hours
    Life Hours

    50,000

  • Dimmable
    Dimmable

    No

  • Colour Temperature
    Colour Temperature

    3000K 4000K 6500K

Part NumberPH7-18T
Selectable Wattage10W 14W 18W
Input Voltage220-240V
CasePolycarbonate
Selectable Colour Temperature3000K 4000K 6500K
Max Output Lumens10W= 950 14W=1250 18W=1500
Switch Time25000
Instant LightYes
IK RatingIK08
Dimensions (mm)Ø316 x 74
MicrowavePH7-18TMW
3Hr EmergencyPH7-18TEM
3Hr Emergency & MicrowavePH7-18TEMMW
PhotocellPH7-18TPC

Key Features

  • Selectable 3 colour temperatures
  • 3 Selectable power options
  • Besa box mounting
  • 3 hour emergency version
  • Replaces a 28W 2D
  • 5 year warranty

Please Note: Product specifications are subject to change without notice. Product supplied may differ slightly in appearance from images shown on this website. Diamond LED Lighting reserve the right to update product specifications.
